Your current location： Home > Product > Stainless steel 90° unidirectional elbow

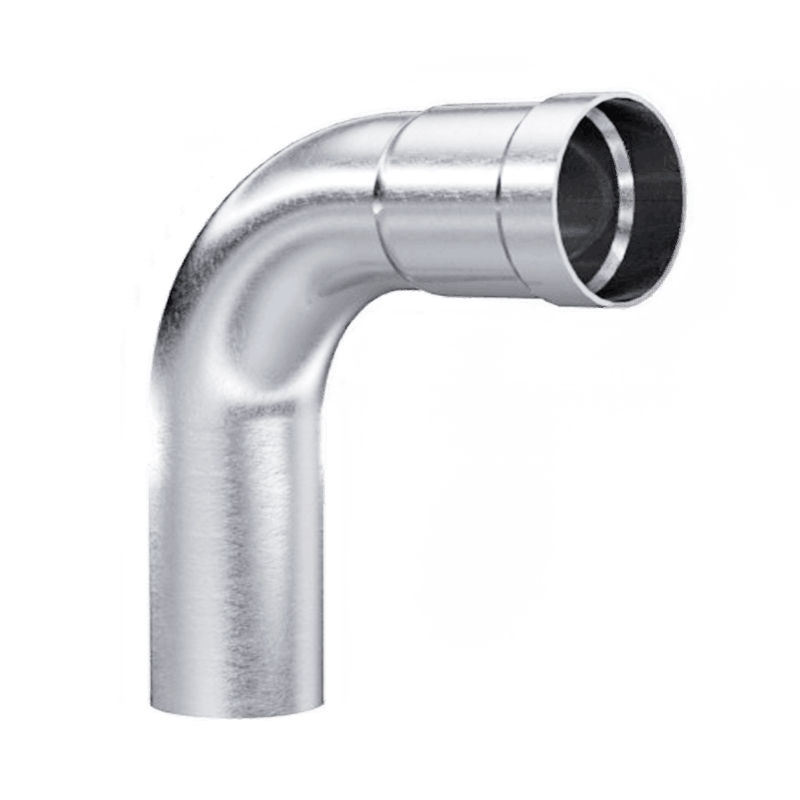

Stainless steel 90° unidirectional elbow

Surface treatment: polishing, acid pickling and passivation
Size range: 1/2"- 6”
texture of material: 304, 304L, 316L, etc
Design standards: GB/T 33926

Product description

Stainless steel ring pressure fittings comply with the GB/T 33926 standard and are made of various materials such as 304, 304L, 316L, etc. They have the characteristics of corrosion resistance, high compressive strength, fast and convenient connection, and long service life. They are suitable for multiple standard requirements such as municipal water supply engineering, fire protection engineering, and gas transmission.

Difficult construction

Conventional welding methods are too dependent on the skills and emotions of the constructor, and are prone to fires and unsafe factors.

Long life requirements

Hot and cold water, direct drinking water, heating, gas and other residential piping systems, in order to avoid frequent maintenance, need to choose the same life as the building fittings.

High cleaning requirements

In many areas, such as pharmaceuticals, beverages, and food, there is a need for cleaner and more stable pipework.

Rusty

Traditional grey iron/carbon steel pipes are prone to rusting and inconsistent water quality (red and yellow water).





Safety and health

Long service life

Rust and corrosion resistant

Wide range of applications





The material is environmentally friendly, non-toxic and suitable for water, gas supply, HVAC and other environments.

The product has the same life span as the building, once installed, long-lasting leakage prevention.

Adopting high quality stainless steel plate and strip to ensure the products' anti-rust and anti-corrosion performance.

We offer a wide range of specifications, a variety of connection methods ring pressure fittings, suitable for most occasions, while supporting the customisation.

Easy to install

Easy to install, no need to set wire or roll groove on the pipe, also do not need to weld on the construction site, the installation success rate is high.
Sealing performance

Good sealing performance, cavity sealing (i.e., two lines of one side of the seal), sealing material selection of cylindrical silicone rubber, can be quickly filled to prevent the emergence of leakage line.
Small diameter loss

Small through diameter loss, ring pressure does not change the geometry of the pipe section, the flow loss at the connection is small and negligible.
High reliability

High reliability, changes in the use of the environment is not easy to change its connection status. Lifetime maintenance-free for normal use.

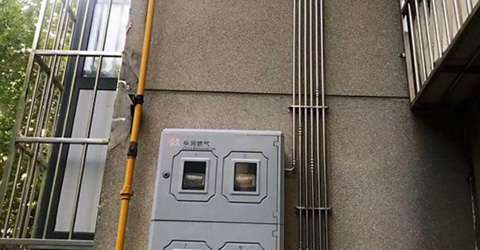

For use in low-pressure fluid transport for civil use, such as hot and cold water, drinking water, heating, gas supply, gas supply, and fire sprinkler systems.

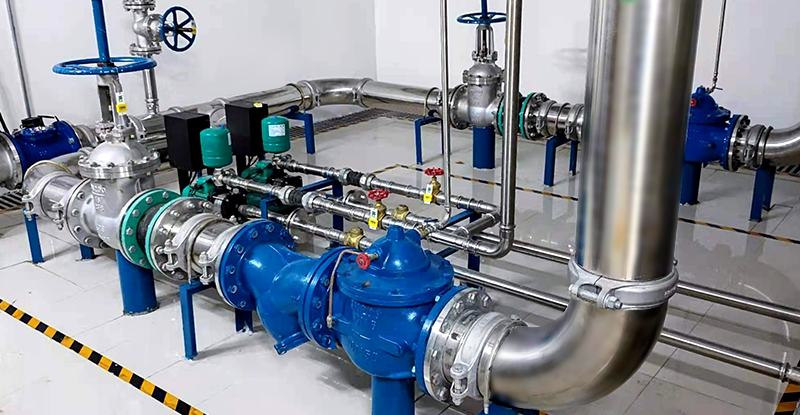

Low-pressure fluid transfer in the medical, beverage, food, brewing, power and chemical industries.





All resources

Technical parameters

Certification information





File name	File Size	Operation
WRAS Certification_32832 (Fittings)	537.06K
CE marking	967.86K
Technical parameters	91.38K
