FBC1 three-stage fire hose
  • FBC1 three-stage fire hose
Back to list

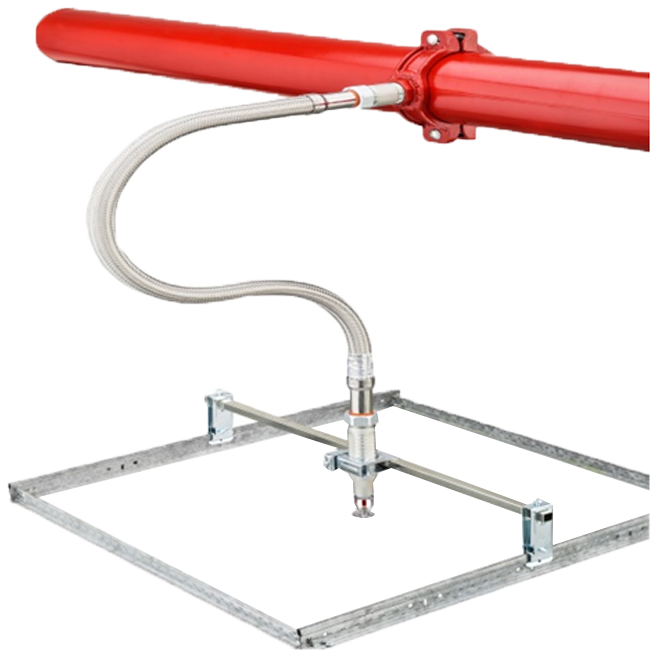

FBC1 three-stage fire hose

Specification range: 700/790/915/1000/1200/1500/1800
Body material: SUS304
Rated working pressure: FM 232psi/1.6MPa, UL 175psi/1.2MPa, 3C 175psi/1.2MPa
Certification: FM/UL/3C;
Thread type: NPT/BSPT
Inlet specification: DN25
Outlet specification: DN15/DN20
Body specification: DN20
Maximum ambient temperature: 107℃/225℉
Minimum bending radius: 254mm (FM certification)

Product description
The main body of the product is made of stainless steel, including stainless steel hose (ie bellows) and installation components. It is used to connect the sprinkler head and the main pipe in the automatic sprinkler system, replacing the traditional hard pipe connection. Compared with the traditional hard pipe, the fire hose installation has eight advantages with its safety and durability, accurate tracking, convenient secondary installation, fast installation, cross operation, silent construction, reduced labor costs, and earthquake resistance. It has become a new solution for the terminal installation of the future automatic sprinkler fire extinguishing system. This product has FM UL 3C certification and is exported to more than 30 countries and regions.
Customer challenge
High storage cost
The steel pipe is large in volume and has many accessories, so the storage, management and transportation costs are high.
High labor cost
It is difficult to hire workers and the labor shortage problem is obvious; workers are required to have high skills.
Difficulty in secondary installation
Adjustment of secondary installation points makes construction difficult; the construction period is limited because it cannot be silent.
No earthquake resistance
Hard connection, no earthquake resistance.
Long construction period
Cross-operation is impossible; installation is difficult and the efficiency is low.
Poor aesthetics
There is a measurement deviation, and it cannot be uniform; it is not integrated with the ceiling, and the ceiling is easy to settle in the later stage.
Traditional hard pipe connection has poor safety
There are many connection points and leakage points; carbon steel material, poor durability; electric equipment is required to cut the pipe and thread the pipe at the construction site, which has high safety hazards.
Product function
Future trend
Earthquake resistance
Convenient for secondary installation
Short construction period
Beautiful
Safety
Future trend
Earthquake resistance
Convenient for secondary installation
Short construction period
Beautiful
Safety
The fire hose is easy to install, and can be constructed by one person. Even a novice can quickly get started. It will definitely be the direction of future construction.
The fire hose is a flexible connection, which can effectively reduce the losses caused by earthquakes.
The fire hose in the secondary installation project can realize flexible adjustment of the spray point and quick modification. There is no need to cut the pipe and thread it during the installation process, only manual tightening is required, and silent construction is required.
The fire hose is easy to install, and the installation speed is more than ten times that of traditional hard pipes. It can be constructed at the same time as the fine decoration project, cross-operation, and the construction period is greatly shortened.
The position of the water outlet of the fire hose can be adjusted up and down, left and right, front and back, and the position can be quickly and accurately tracked to ensure that the height of the sprinkler head is consistent and beautiful.
No leakage points, which can ensure a successful pressure test. It is made of stainless steel, corrosion-resistant and highly safe.
Value advantage
  • Full process self-production
    Full process self-production
    full process self-production, quality traceability, 100% airtightness testing, product quality worry-free.
  • Service advantages
    Service advantages
    provide customers with pre-sales product training, installation guidance during sales, and one-stop service for after-sales problem handling, reduce communication costs, and provide customers with problem solutions.
  • Fast delivery
    Fast delivery
    conventional products are delivered in 48 hours to meet customer needs.
  • Complete certification
    Complete certification
    with FM UL 3C certification, products are exported to more than 30 countries and regions.
Application scenario

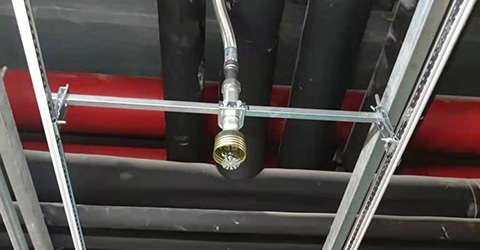

Light Dangerous and Medium Dangerous Class 1 building types
Light Dangerous and Medium Dangerous Class 1 building types
Light Dangerous and Medium Dangerous Class 1 building types
Light Dangerous and Medium Dangerous Class 1 building types
Relevant data
All resources
Technical parameters
Certification information
File name File Size Operation
FM: Fire Hose FBC1 FBC2 FBC3 FBC4 Certificate 163.96K
UL: Certification: FBC1, FUC1, FBC2 459.46K
3C-FBC1 Fire Certificate 3.96M
Mike Fire Hose Sample Book Chinese 2.84M
File name File Size Operation
Mike Fire Hose Sample Book Chinese 2.84M
File name File Size Operation
FM: Fire Hose FBC1 FBC2 FBC3 FBC4 Certificate 163.96K
UL: Certification: FBC1, FUC1, FBC2 459.46K
3C-FBC1 Fire Certificate 3.96M
