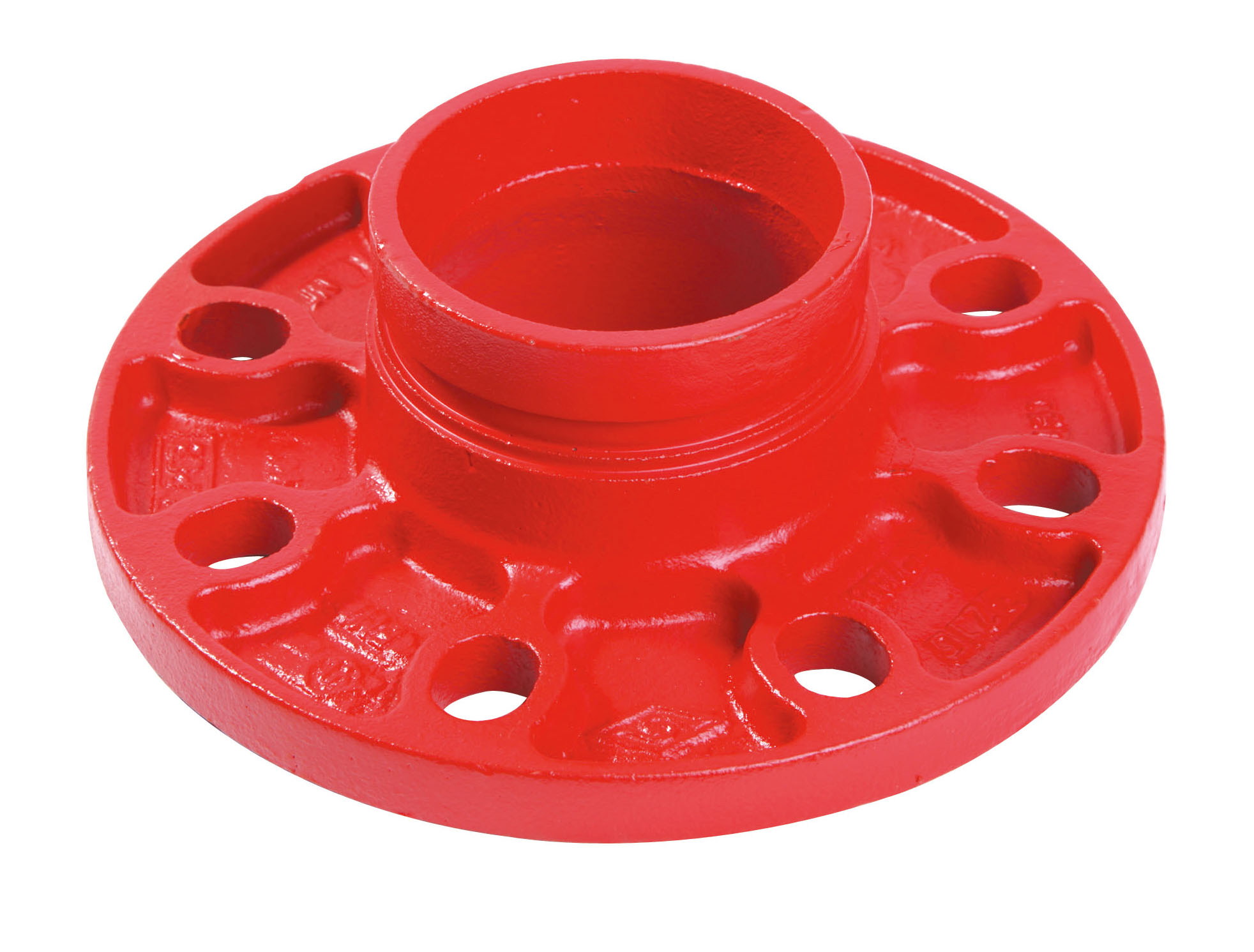

Ductile Iron Grooved Fittings - Adaptor Flange

Product Name: Ductile Iron Grooved Fittings - Adaptor Flange

Product Code: 321G

Size Range: 1" (DN25) – 18" (DN450)

Design Standards: ISO 6182, AWWA C606, GB 5135.11

Product Material: ASTM A536 Grade 65-45-12 and GB/T 1348 QT450-10

Certifications: UL/FM/VdS/LPCB

Connected Pipe Standards:

ASME B36.10, ISO 4200, GB/T 21835, GB/T 3091

Product description

Grooved Connection Technology, also known as Clamp Connection Technology, has been widely adopted in domestic and international markets due to its advanced nature, gradually replacing traditional pipeline connection methods such as flanges and welding. It is not only technically mature and market-proven but also actively guided by national regulations and policies. This technology simplifies pipeline connections, making them faster, more convenient, and propelling pipeline engineering forward.

Traditional Welding and Flange Connections are rigid joints, which fail to address issues such as pipeline thermal expansion/contraction and settlement.

Traditional Flange Connections: Require large installation space, unsuitable for confined areas.

Traditional Welding/Flange Connections: Low efficiency, high costs, long cycles, and complex maintenance.

Traditional Welded Connections: Generate welding slag and fumes, demand high installation qualifications, prolong project timelines, and increase costs.

Traditional Threaded Connections: On-site threading is required, complicating construction.





Performance Safety and Reliability

Noise Reduction

Vibration Absorption

Quick Installation

Impact Resistance

Eco-Friendliness





Our company is the only factory in China that simultaneously holds FM, UL, LPCB, and VdS certifications, and we also offer the most comprehensive range of 3C-certified specifications in China. With pressure ratings ranging from 225 psi to 750 psi, we can meet your requirements for different pressure levels.

The use of elastic rubber sealing rings in gasket sealing effectively mitigates vibrations and significantly reduces noise.

Pre-set pipe-end clearance efficiently addresses pipeline thermal expansion/contraction and compensates for pipeline settlement.

Disassembly, maintenance, and replacement of pipeline components are effortless. Particularly with our Quick-Install Series, installation speed is increased tenfold.

High mechanical strength, strong pressure resistance, and excellent durability against physical impacts.

Bolts and nuts feature trivalent chromium coating, ensuring environmental safety. On-site installation generates no welding slag or fume pollution.

Corrosion Resistance

The surface of castings can undergo anti-corrosion treatments such as electrophoretic coating, powder coating, and hot-dip galvanizing.
Easy Maintenance

The system exhibits excellent stability and ease of maintenance. The grooved pipe fittings connection method features unique flexible characteristics, enabling the pipeline to resist vibration, contraction, and expansion. Compared to welding and flange connections, the stability of the pipeline system is enhanced, making it more adaptable to temperature variations. This protects pipeline valves and reduces stress-induced damage to structural components.
Easy Installation

The connection process for grooved pipe fittings is straightforward, requiring no specialized skills. Ordinary workers can operate it after brief training. The required installation space is minimal, allowing true wall- or corner-mounted installation. This significantly reduces operational complexity, saves floor space, and improves the aesthetic quality of pipeline installation.
Construction Safety

Grooved pipe fittings connection technology requires only basic tools on-site, such as a cutting machine, grooving machine, and wrenches for tightening bolts. Construction organization is simplified, and no open flame treatment is required.
Economic Efficiency

The simplicity of grooved pipe fittings connection operations saves labor and time, resulting in strong economic benefits.
