Double-Sided Submerged Arc Welded Spiral Pipe

Product Specifications: D219-D3048 mm

Design Standards: API 5L, GB/T 9711-2023, GB/T 3091-2015, SY/T 5037-2023

Material: Q235B, Q355B, L245(M), L290(M), L360(M), L415(M), L450(M), L485(M), L555(M)

Wall Thickness Range: 6-25.4 mm

Product description
Double-Sided Submerged Arc Welded Spiral Pipe is a type of steel pipe manufactured using the submerged arc welding process, featuring a single spiral seam. It is produced on the most advanced continuous flying-welding production line in China, equipped with imported internal and external welding machines. The technology is highly sophisticated, with double-sided submerged arc automatic welding for both the interior and exterior surfaces. Each production line is equipped with a hydraulic tester, an advanced ultrasonic full-body material and seam automatic inspection system, and an X-ray real-time imaging inspection system. It also features a national-level CNAS laboratory.
Customer challenge
Prone to defects
The front-swing production line requires frequent stoppages for butt welding, resulting in low efficiency and a higher likelihood of defects.
The demand for the products increases.
There is an increasing demand for large-diameter, high-grade steel pipes with thick walls.
Have a short lifespan
Traditional pipeline materials often cause environmental pollution. For example, plastic pipe waste is difficult to dispose of.
It is easy to pollute the environment.
Traditional fluid pipelines often have a short service life and cannot guarantee quality.
Product function
Dredging and Slurry Conveyance
Structural Function
Fluid Transportation Function
Used for mud discharge and sand pumping, as well as for conveying grout in tunnels.
Used as steel pipes for structural applications, such as pile pipes, steel casings, structural steel pipes for construction, and support (column) pipes.
Used as pipelines for conveying gases and liquids, including petroleum, natural gas, steam, air, and water.
Value advantage
  • High Production Efficiency
    High Production Efficiency
    The use of advanced double-sided submerged arc welding technology significantly enhances the efficiency of mass production, thereby reducing the manufacturing cost per unit.
  • High Material Utilization
    High Material Utilization
    Compared to straight seam welded pipes, spiral welded pipes can more effectively utilize raw materials under the same conditions, reducing waste and lowering material costs.
  • Stable and Reliable Quality
    Stable and Reliable Quality
    Good welding quality and durability reduce maintenance and replacement costs caused by quality issues, resulting in high cost-effectiveness over long-term use.
  • Diverse Specifications
    Diverse Specifications
    Double-sided submerged arc welded spiral pipes can be customized in different diameters, wall thicknesses, and lengths according to customer needs, meeting a variety of requirements while avoiding unnecessary resource waste.
  • Long Service Life
    Long Service Life
    The service life of double-sided submerged arc welded spiral pipes can exceed 30 years.
Application scenario

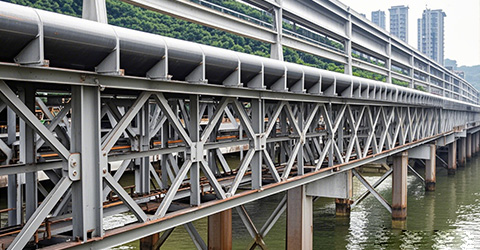

Pile pipes for building and bridge construction
Pile pipes for building and bridge construction

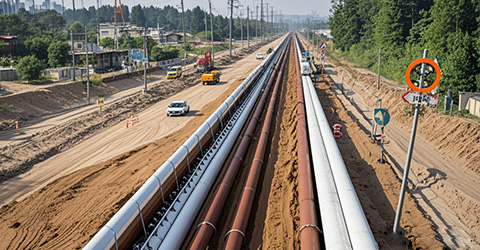

The field of urban district heating and ventilation and air - conditioning
The field of urban district heating and ventilation and air - conditioning

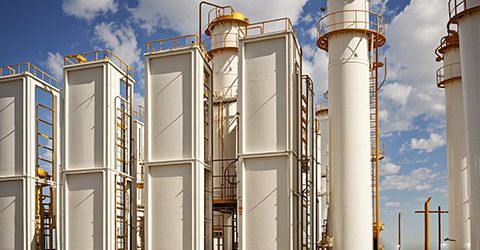

The field of national petroleum and natural gas” 或 “the national oil and gas sector
The field of national petroleum and natural gas” 或 “the national oil and gas sector
